What the Conductor Plate Does
The conductor plate (also called the mechatronic unit in some documentation) is an internal electrical component inside the 722.9 7G-Tronic transmission valve body. It contains a printed circuit board with gear position sensors (multi-function switch), individual solenoid connectors, and wiring embedded in a flexible carrier. It reads gear selector position, controls which solenoids are activated for each gear, and communicates gear position to the transmission ECU and instrument cluster.
When the conductor plate fails, the transmission loses accurate position sensing and solenoid control. The result is the transmission behaving erratically — hesitating to engage from park, shifting harshly between gears, slipping, or in some cases going into limp mode (locked in a single gear to protect the transmission from uncontrolled shifting).
Symptoms of Conductor Plate Failure
- Harsh, jerky shifts — especially at low speeds and during 1–2 and 2–3 gear changes
- Hesitation or delay when selecting Drive from Park — the car pauses before engaging
- Transmission slipping or unexpected rev increases between gears
- Limp mode — transmission locked in a single gear, usually 2nd or 3rd
- P0700-series fault codes: P0700, P0706, P0715, P0720 are common
- Gear indicator showing wrong gear or dashes instead of gear number
Why It's Commonly Misdiagnosed
The symptoms of conductor plate failure — harsh shifts, slipping, limp mode — are identical to the symptoms of actual mechanical transmission failure. A shop without Mercedes-specific diagnostic capability (XENTRY or equivalent) reading only generic P0700-series codes may conclude the transmission is failing mechanically. A shop that specializes in transmission replacements has financial incentive to interpret symptoms as requiring a replacement rather than a $500 part replacement.

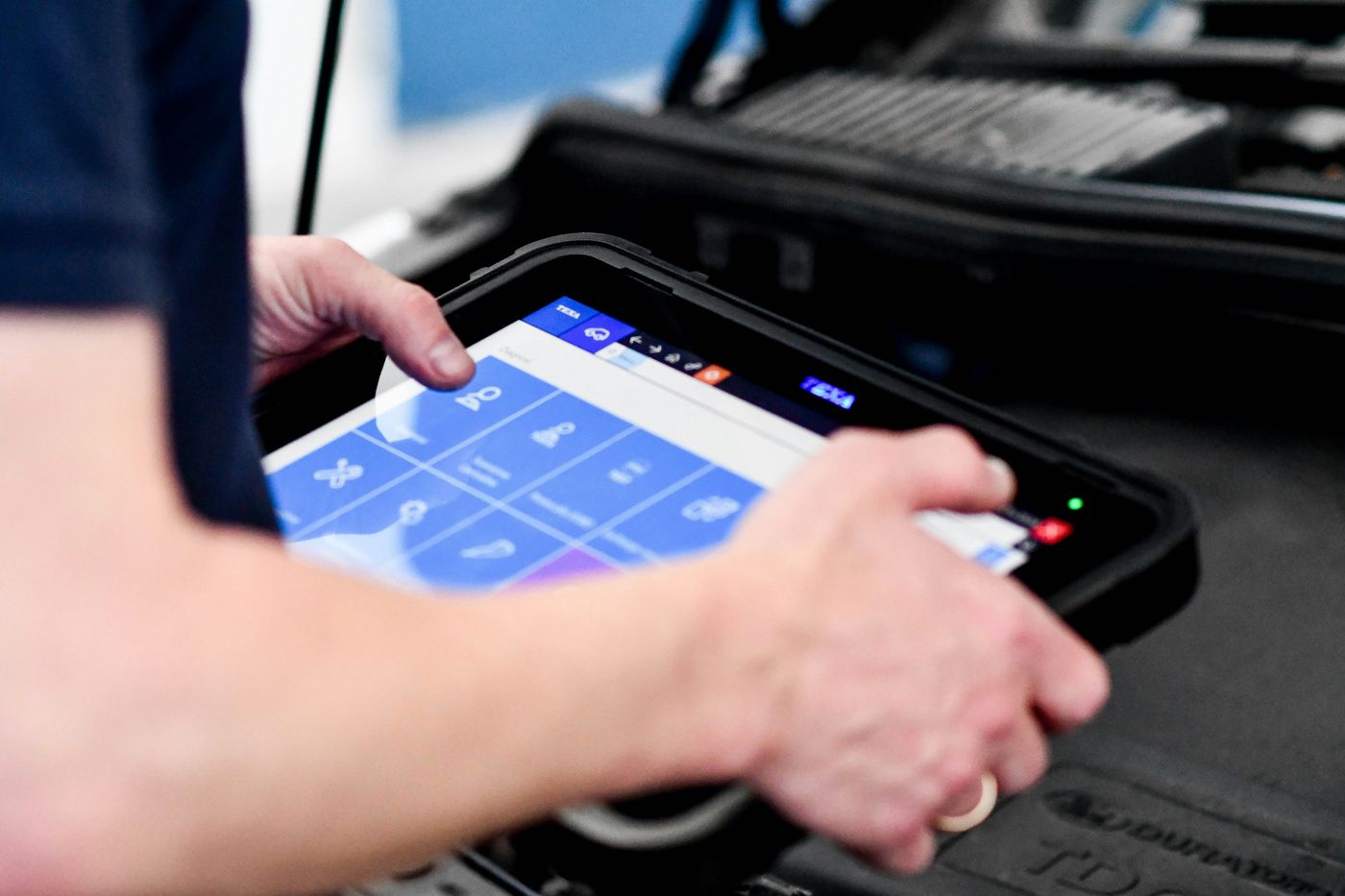

The distinguishing factor is a detailed transmission module scan with Mercedes-specific software. XENTRY reads individual conductor plate circuit resistance values, solenoid response data, and transmission adaptation values. If the conductor plate circuits are reading out of spec but the mechanical adaptation data looks healthy (clutch engagement pressure normal, no internal slippage data), conductor plate failure is the diagnosis — not mechanical transmission failure.
Before authorizing any transmission removal: Insist on a detailed XENTRY or equivalent scan that reads the transmission module specifically — not just OBD-II generic codes. Ask to see the solenoid and sensor data, not just the fault code list. A shop that can't produce this level of data from your Mercedes transmission isn't in a position to accurately diagnose it.
The Correct Repair
Conductor plate replacement is performed with the transmission in the vehicle. The transmission oil pan is removed, the fluid is drained, the valve body is accessible, and the conductor plate is unclipped and replaced. The repair also requires a transmission fluid service — the old fluid and pan debris are removed, the filter is replaced, and fresh ATF 134 Mercedes transmission fluid is installed. After reassembly, the transmission requires a XENTRY adaptation reset to relearn clutch engagement pressures with the new conductor plate.
| Component | Cost Range |
|---|---|
| Conductor plate (OEM) | $280–$450 |
| Transmission fluid (ATF 134) + filter | $120–$200 |
| Labor (3–5 hours) | $360–$750 |
| XENTRY adaptation reset | Included in labor |
| Total typical range | $760–$1,400 |
Transmission Fluid Service — Don't Skip It
Any time the 722.9 transmission pan is opened, a full fluid service is mandatory — not optional. Old, degraded ATF is one of the primary factors that accelerates conductor plate wear in the first place. Installing a new conductor plate and refilling with old fluid reduces the longevity of the repair. The fluid spec is Mercedes ATF 134 (or approved equivalent) — do not substitute with a generic automatic transmission fluid regardless of what the bottle says about compatibility.
Affected Models
The 722.9 7G-Tronic is used in virtually every Mercedes model sold in the US from 2004 onward. This includes the C-Class (W203 late, W204, W205), E-Class (W211, W212, W213), S-Class (W220 late, W221, W222), ML/GLE (W164, W166, W167), CLS, SL, SLK/SLC, GLK, and GLC (pre-9G-Tronic). The conductor plate failure pattern applies across all of these applications.
